LED Stair Screen
LED Stair Screen
Share

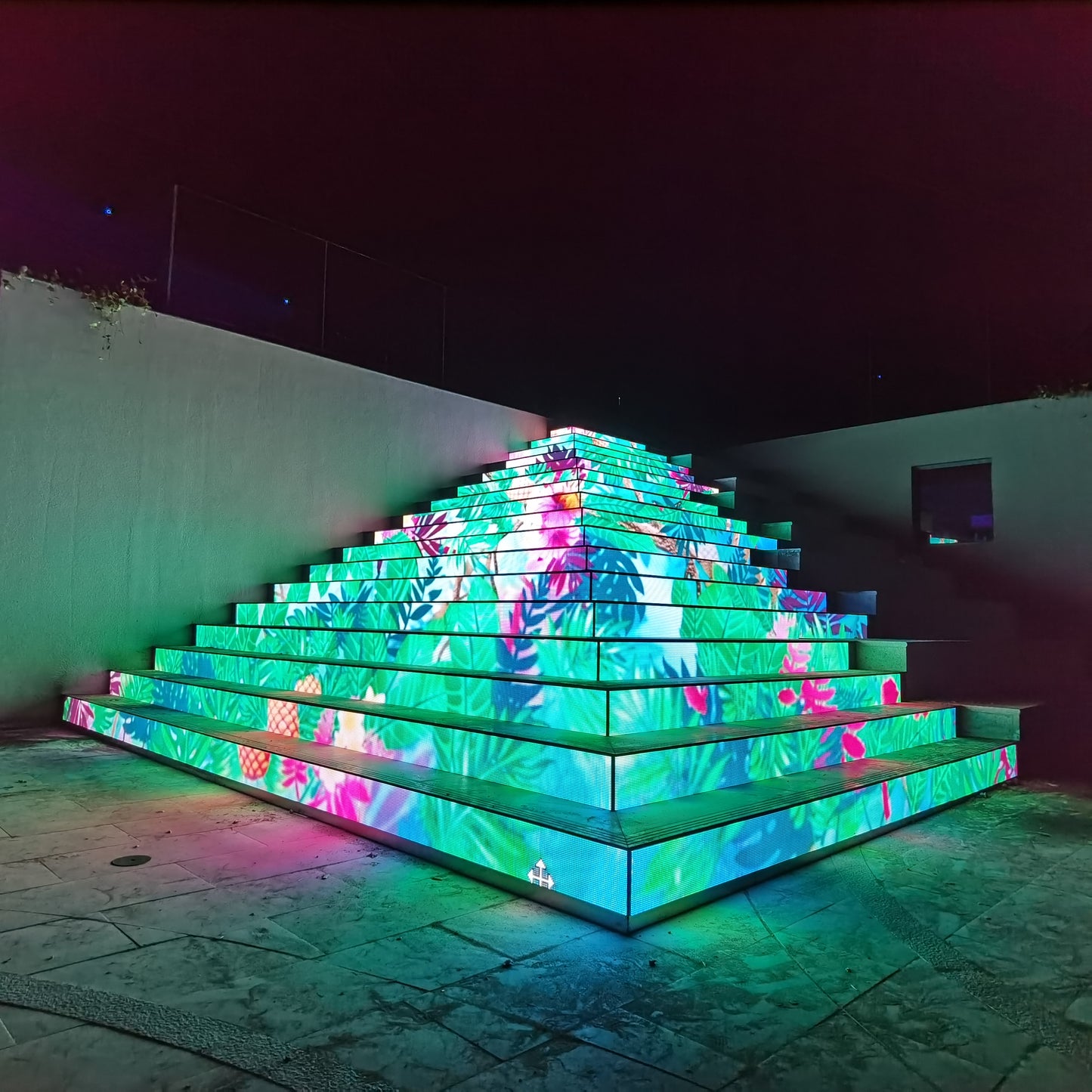

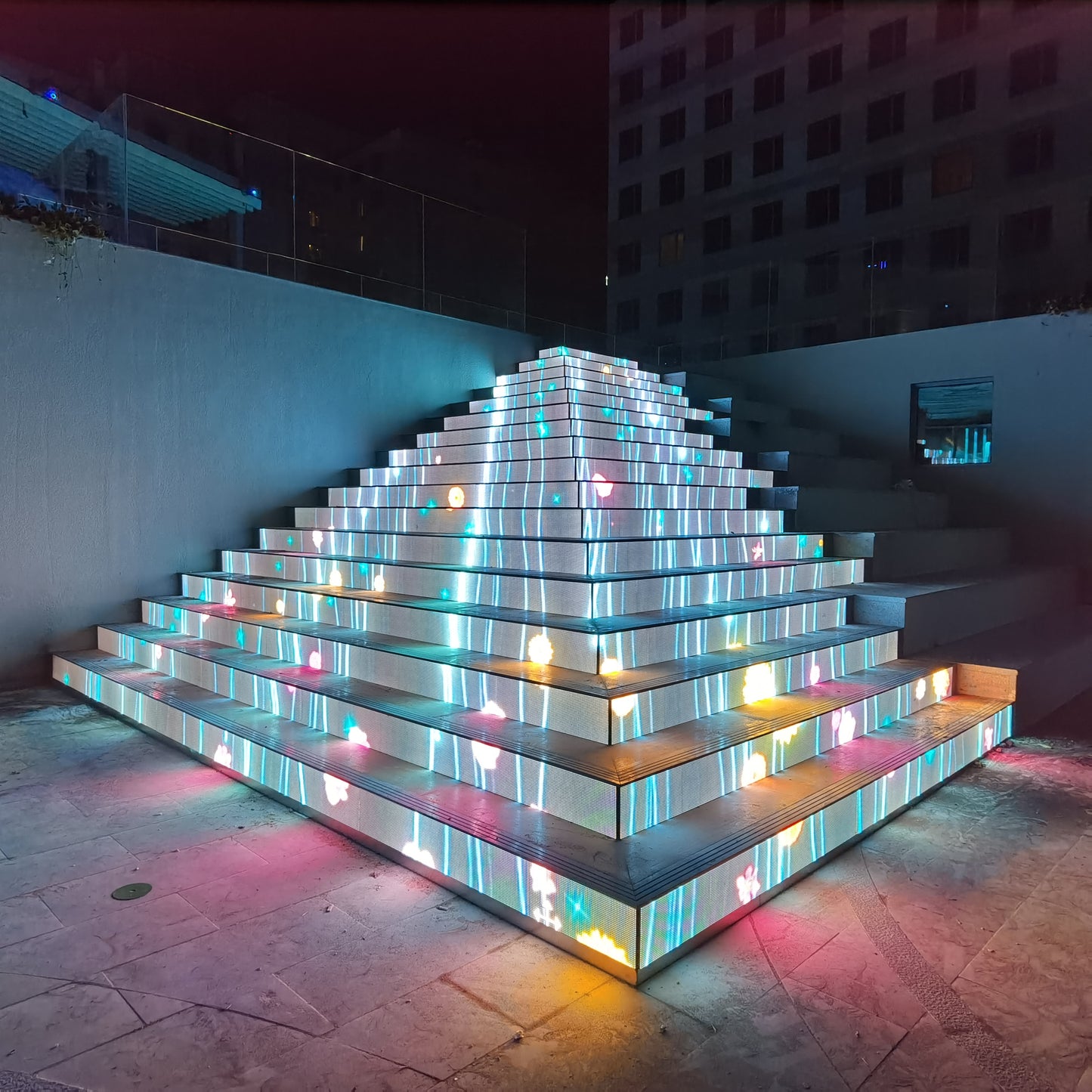

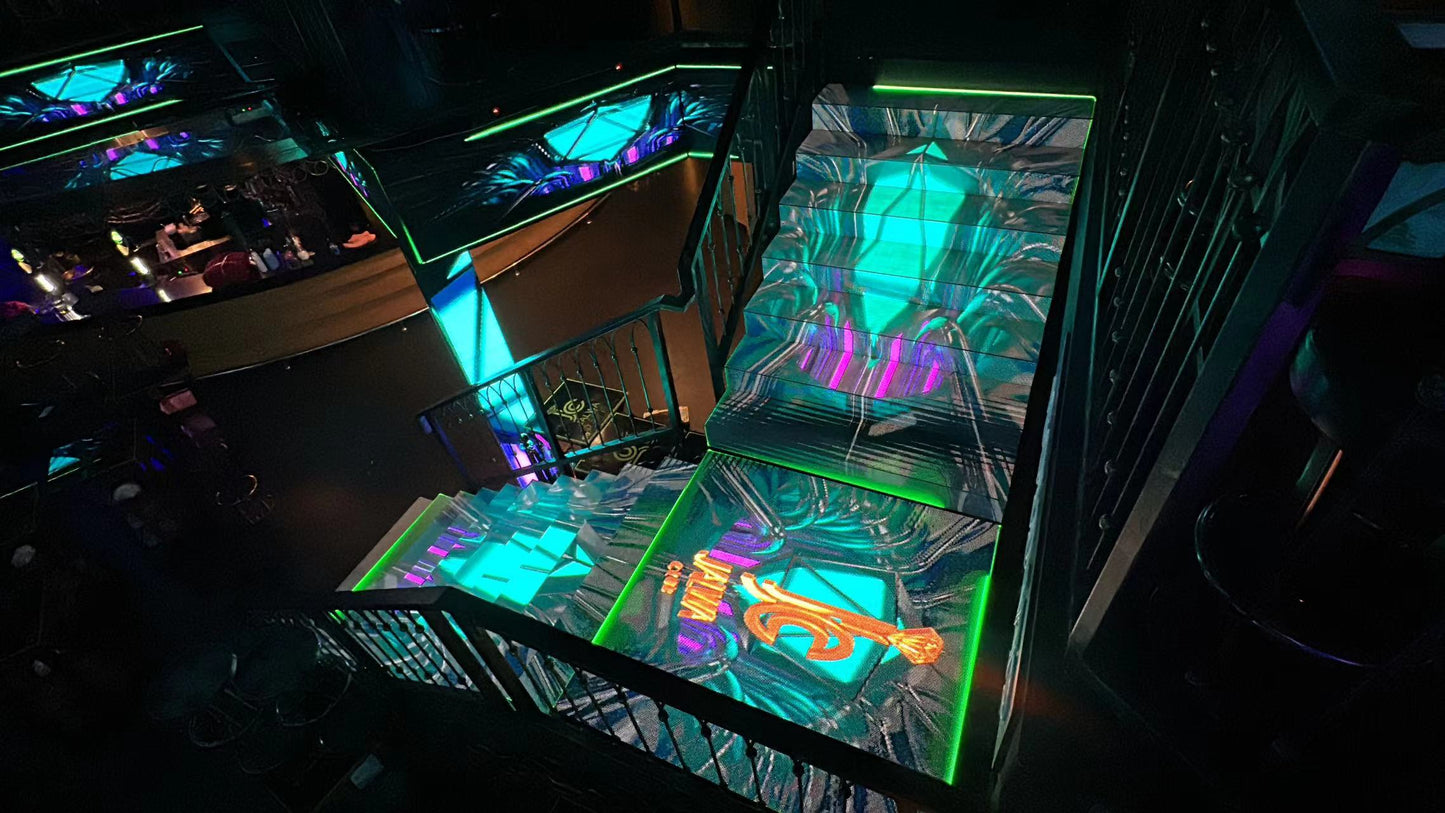

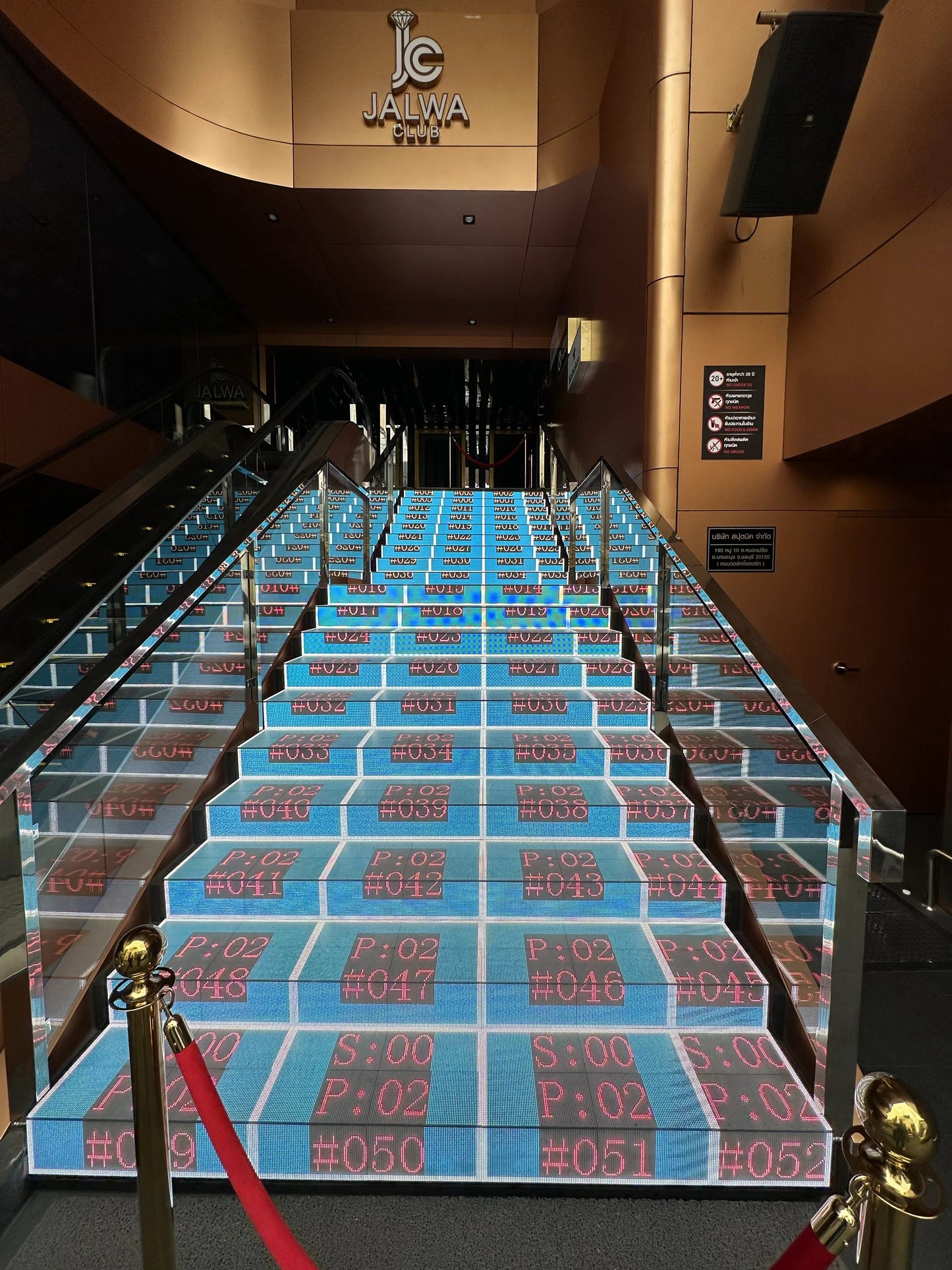

The LED stair screen is based on the architectural stairs or landscape stairs, combined with the basic elements and symbols of the building, seeking the best visual language. From the perspective of art and aesthetics, the LED elements are perfectly integrated with the building and further beautified and improved to achieve value sublimation and urban landmarks.
Dot pitch | P1.875 | P2.6 | P2.9 | P3.91 |
---|---|---|---|---|
LED type | SMD1010 | SMD1415 | SMD1921 | SMD1921 |
Pixel density (Dot/m²) | 640000 | 147456 | 118336 | 65536 |
Module resolution | 128×128 | 96×96 | 86×86 | 64×64 |
Module size (W×H) | 240×240 | 250×250 | 250×250 | 250×250 |
Cabinet size (mm) | 720×720mm | 500×1000mm | 500×1000mm | 500×1000mm |
Cabinet resolution | 384×384 | 192×384 | 172×344 | 128×256 |
Box module composition(W×H) | 4×4 | 2×4 | 2×4 | 2×4 |
Box weight (kg) | 25 | 25 | 25 | 25 |
Maintenance mode | after maintenance | after maintenance | after maintenance | after maintenance |
Cabinet material | iron/die cast aluminum | iron/die cast aluminum | iron/die cast aluminum | iron/die cast aluminum |
Single point brightness correction | have | have | have | have |
Brightness(Nits) | ≥600 | ≥1000 | ≥1200 | ≥1600 |
Color temperature (K) | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 |
Gray scale | 16 bit | 16 bit | 16 bit | 16 bit |
Angle of view (H/V) | 160°/160° | 120°/120° | 120°/120° | 120°/120° |
Luminance/Chromaticity Uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
Contrast | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
Frame rate | 50/60 | 50/60 | 50/60 | 50/60 |
Drive mode | 1/32 | 1/32 | 1/28 | 1/32 |
Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
Maximum power consumption(W/m²) | 650 | 650 | 650 | 650 |
average power consumption (W/m²) | 200 | 200 | 200 | 200 |
Degree of protection | IP 45 | IP 45 | IP 45 | Interior IP 45 Exterior IP54 |
power requirements | AC90-264V, 47-63 Hz | |||
Working temperature/humidity range (°C/RH) | -20~60°C / 10%~85% | |||
Storage temperature/humidity range (°C/RH) | -20~60°C / 10%~85% | |||
Applicable standard | CCC / CE / RoHS / FCC / BIS / CB / TUV / IEC |
