Soft Module LED Flexible Screen
Soft Module LED Flexible Screen

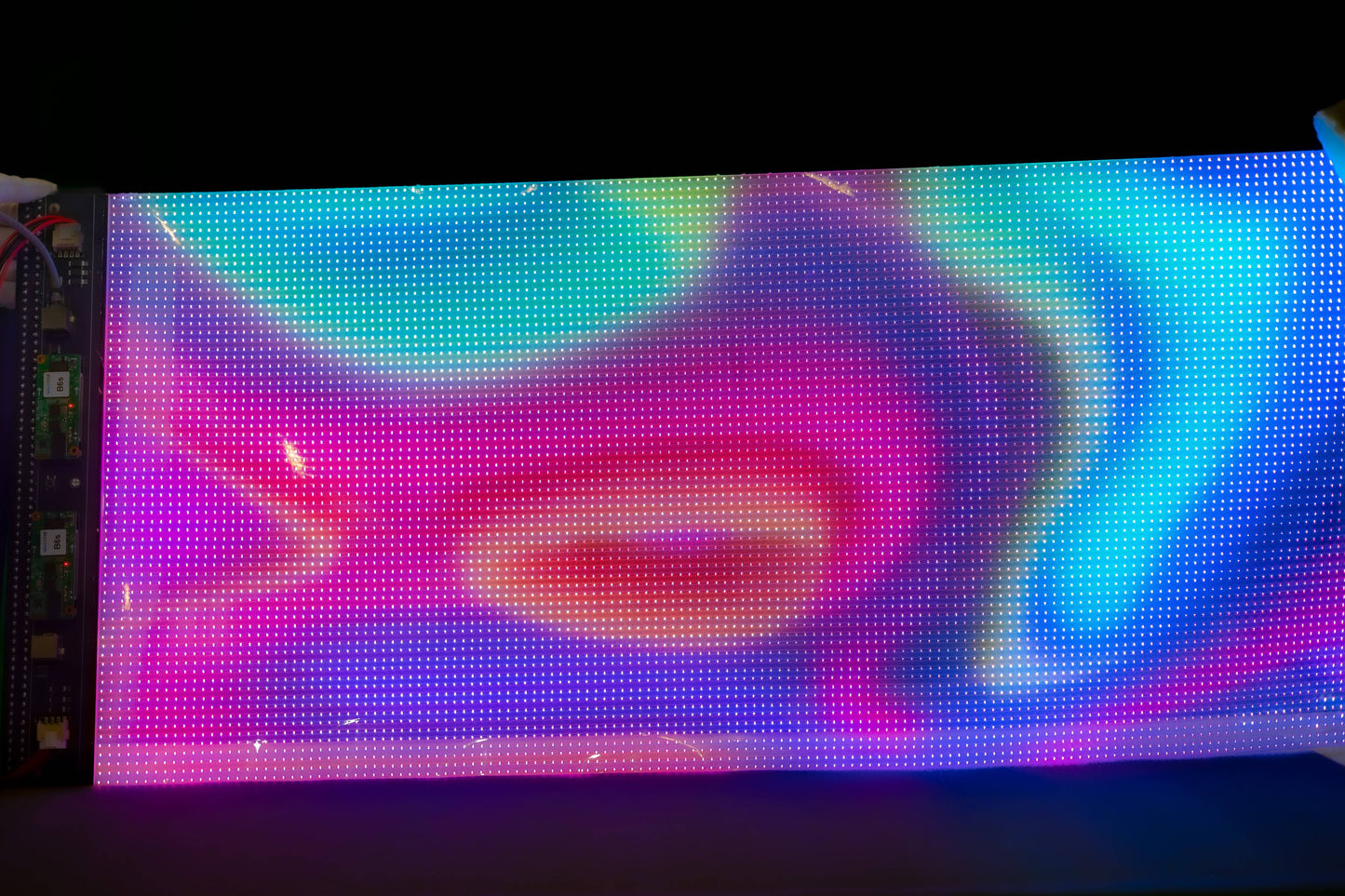

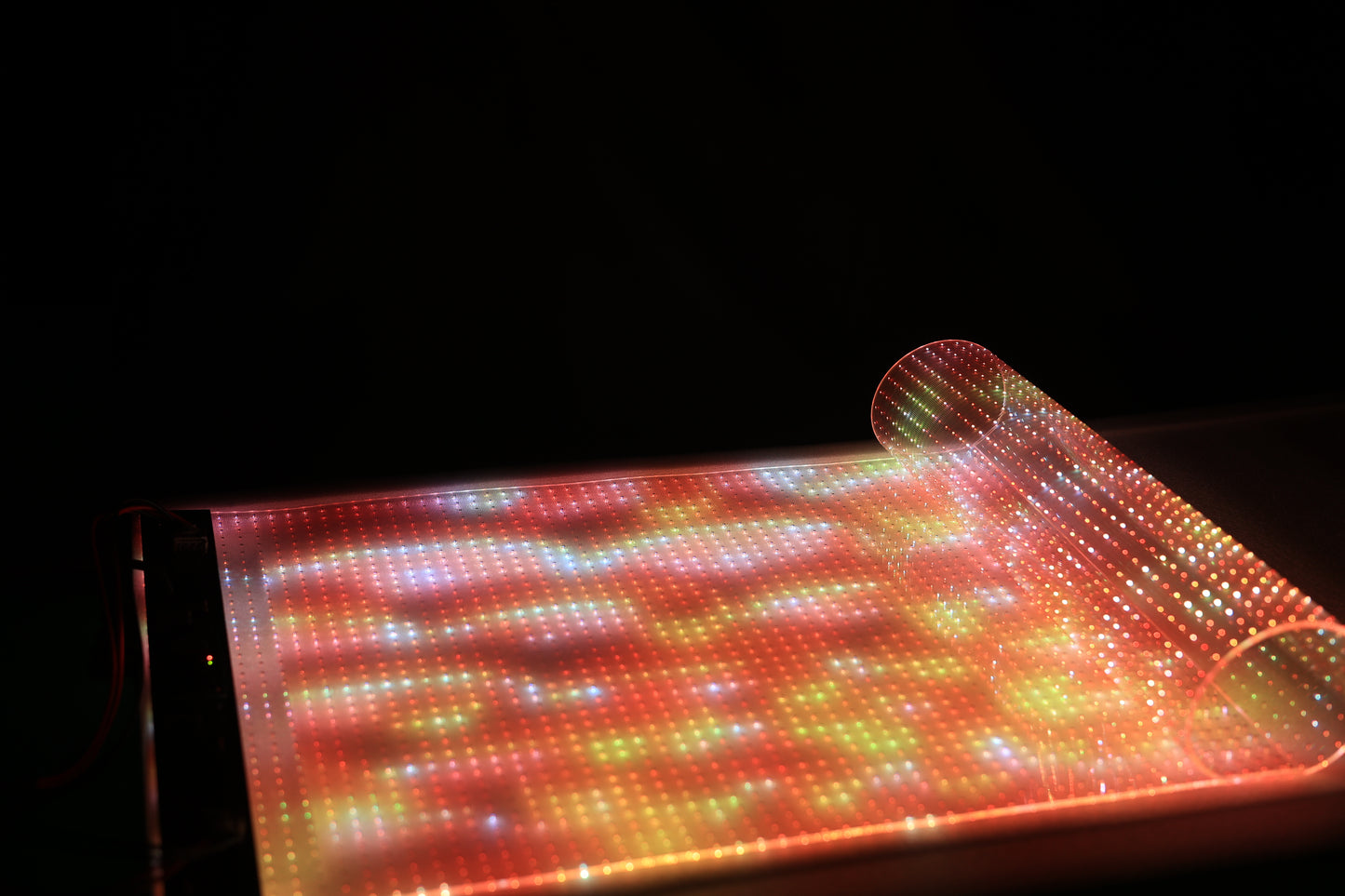

The Soft Module LED Flexible Screen boasts a thin and lightweight FRC material design, providing superior flexibility and performance. Its high refresh rate, crisp display, and energy-efficient features make it the top choice for a wide range of art and custom modeling projects. With a 360° viewing angle, it is the ideal option for creative applications.
| Dot pitch | P1.25 | P1.56 | P1.875 | P2 | P2.5 |
|---|---|---|---|---|---|
| LED type | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Pixel density (Dot/m²) | 640000 | 409600 | 284444 | 250000 | 160000 |
| Module resolution | 192 ×96 | 152 ×72 | 128×64 | 120 ×60 | 96 ×48 |

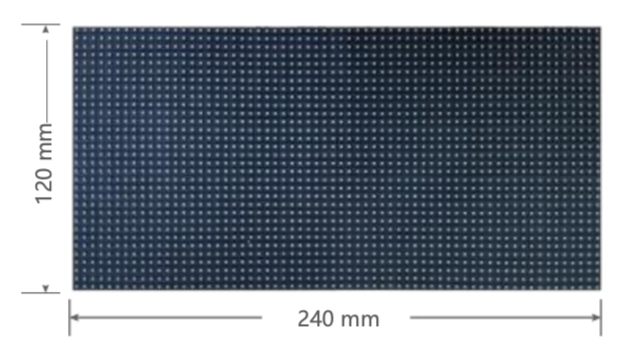

| Module Dimensions (W×H) | 240×120 | 240×120 | 240×120 | 240×120 | 240×120 |
| Box size (mm) | Alien customization | Alien customization | Alien customization | Alien customization | Alien customization |
| maintenance mode | Pre/Post Maintenance | Pre/Post Maintenance | Pre/Post Maintenance | Pre/Post Maintenance | Pre/Post Maintenance |
| Cabinet material | Die cast aluminum/iron | Die cast aluminum/iron | Die cast aluminum/iron | Die cast aluminum/iron | Die cast aluminum/iron |
| Brightness (Nits) | 600 | 600 | 700 | 700 | 800 |
| Color temperature (K) | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 |
| Angle of view (horizontal/vertical) | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Best viewing distance | 2-50m | 4-150m | 6-200m | 6-250m | 6-900m |
| Display color | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion | 68.7 Billion |
| Contrast | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 32-64S | 32-64S | 1/32S | 1/30S | 1/24S |
| Gray scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Maximum power consumption(W/m²) | 600 | 600 | 600 | 600 | 600 |
| Average Power Consumption (W/m²) | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 |
| degree of protection | IP 31 | IP 31 | IP 31 | IP 31 | IP 31 |
| power requirements | AC90-264V, 47-63 Hz | ||||
| Working temperature/humidity range (°C/RH) | -20~60°C / 10%~85% | ||||
| Storage temperature/humidity range (°C/RH) | -20~60°C / 10%~85% | ||||
| Applicable standard | CCC / CE / RoHS / FCC / BIS / CB / TUV / IEC | ||||
- Compared with traditional PCB materials, it has high-strength compression and anti-torsioncapabilities, which can better solve various "twisting around, Difficult installation problem
- The LED flexible module is mainly installed with magnetic column suction, which is convenient and quick to install, and it is also easy to shape

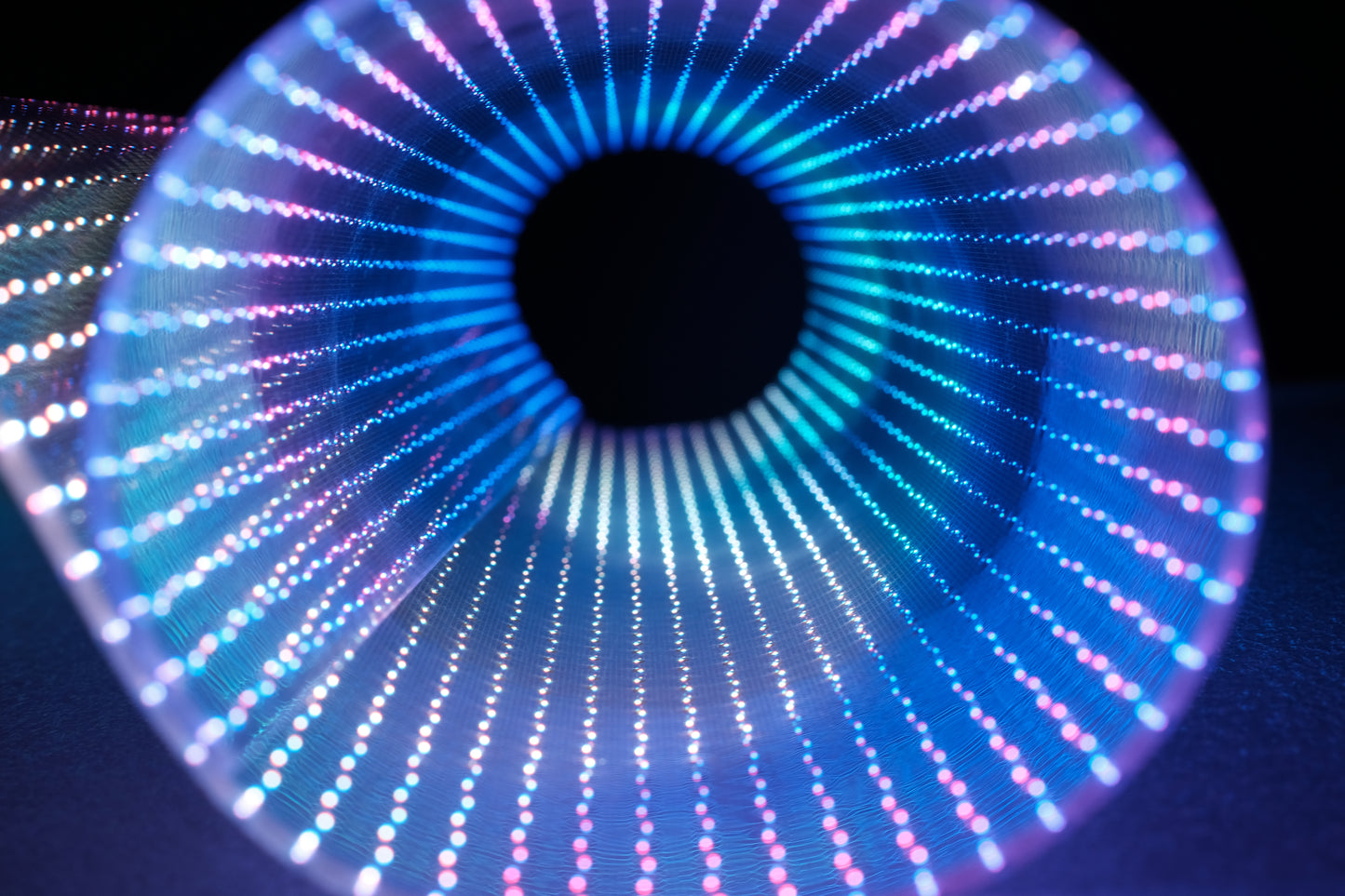

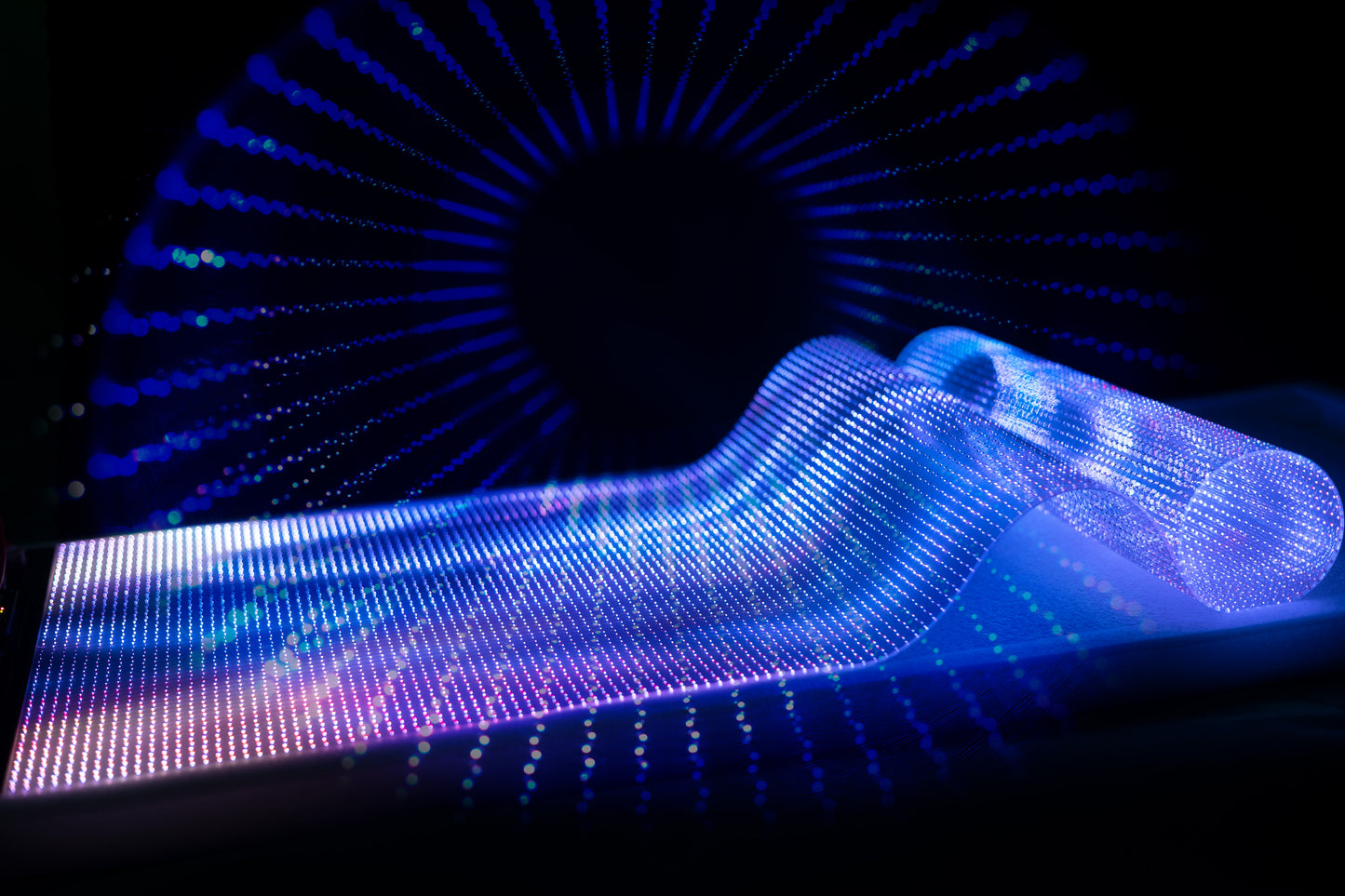

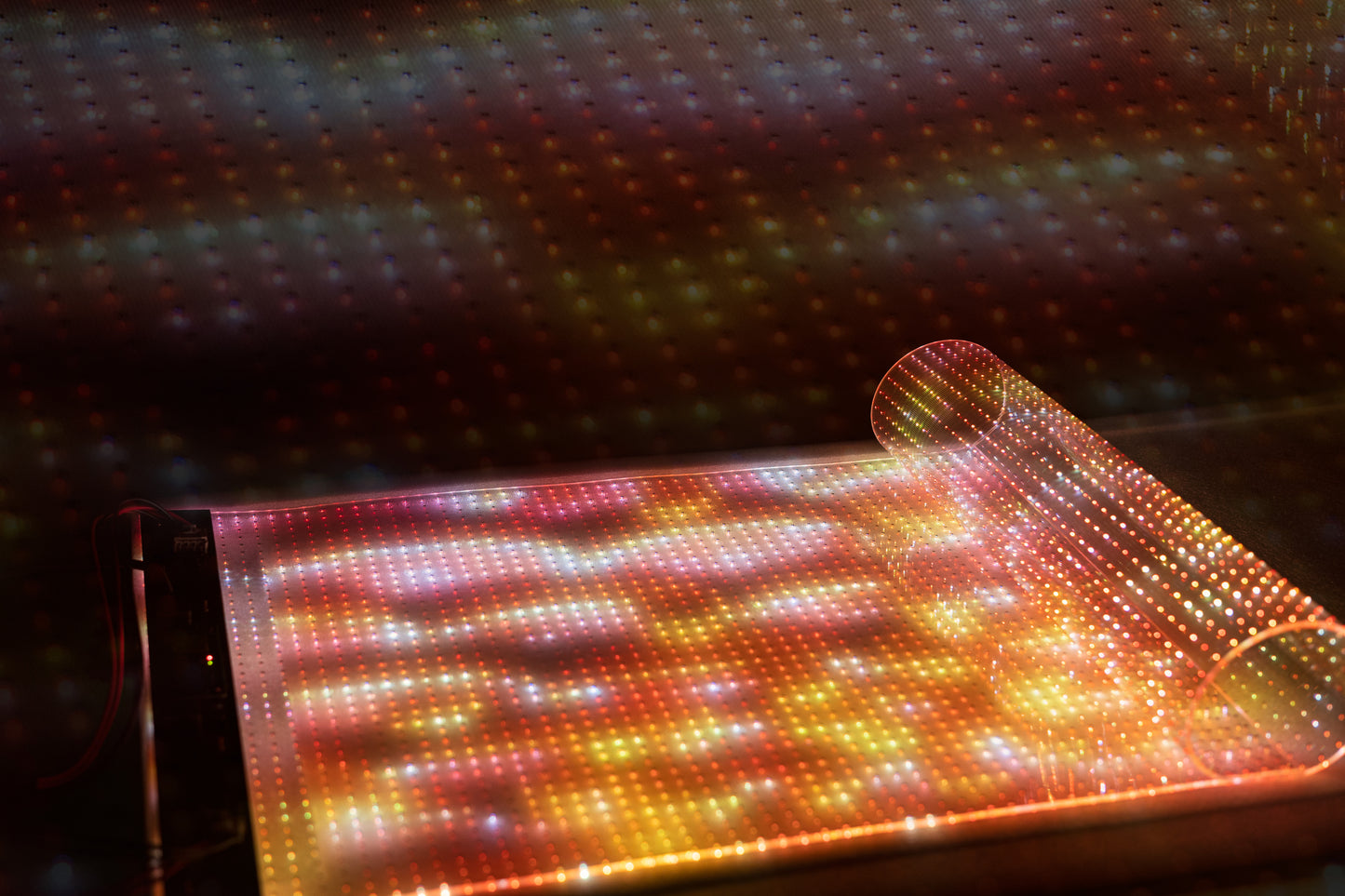

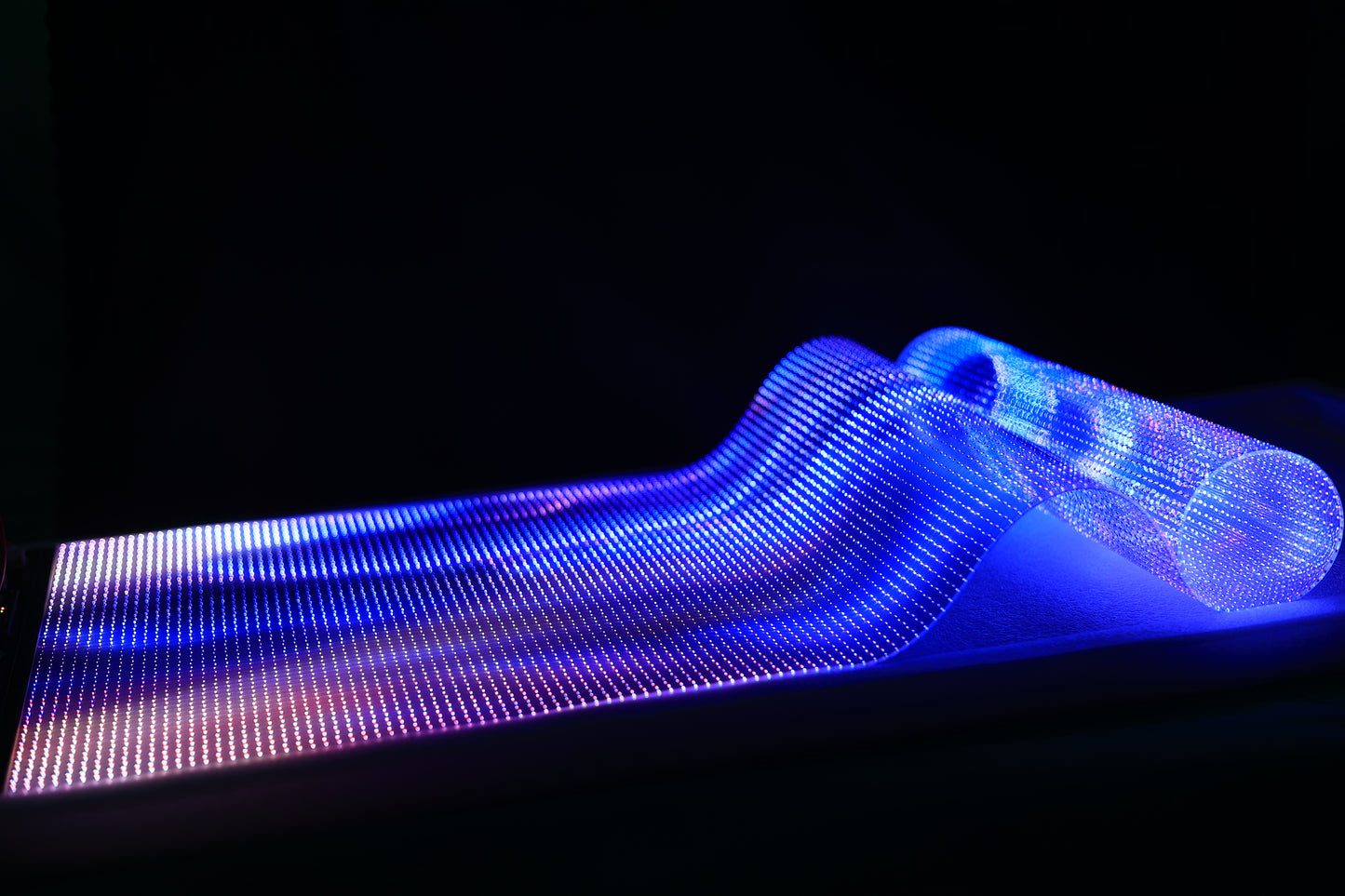

- Good ductility, can be shaped into any shape, can be hoisted, seated, hung, etc., to meet the requirements of on-site installation to the greatest extent
- High quality, single-point maintenance, seamless splicing, and the splicing error between modules can be controlled within plus or minus 0.1 mm

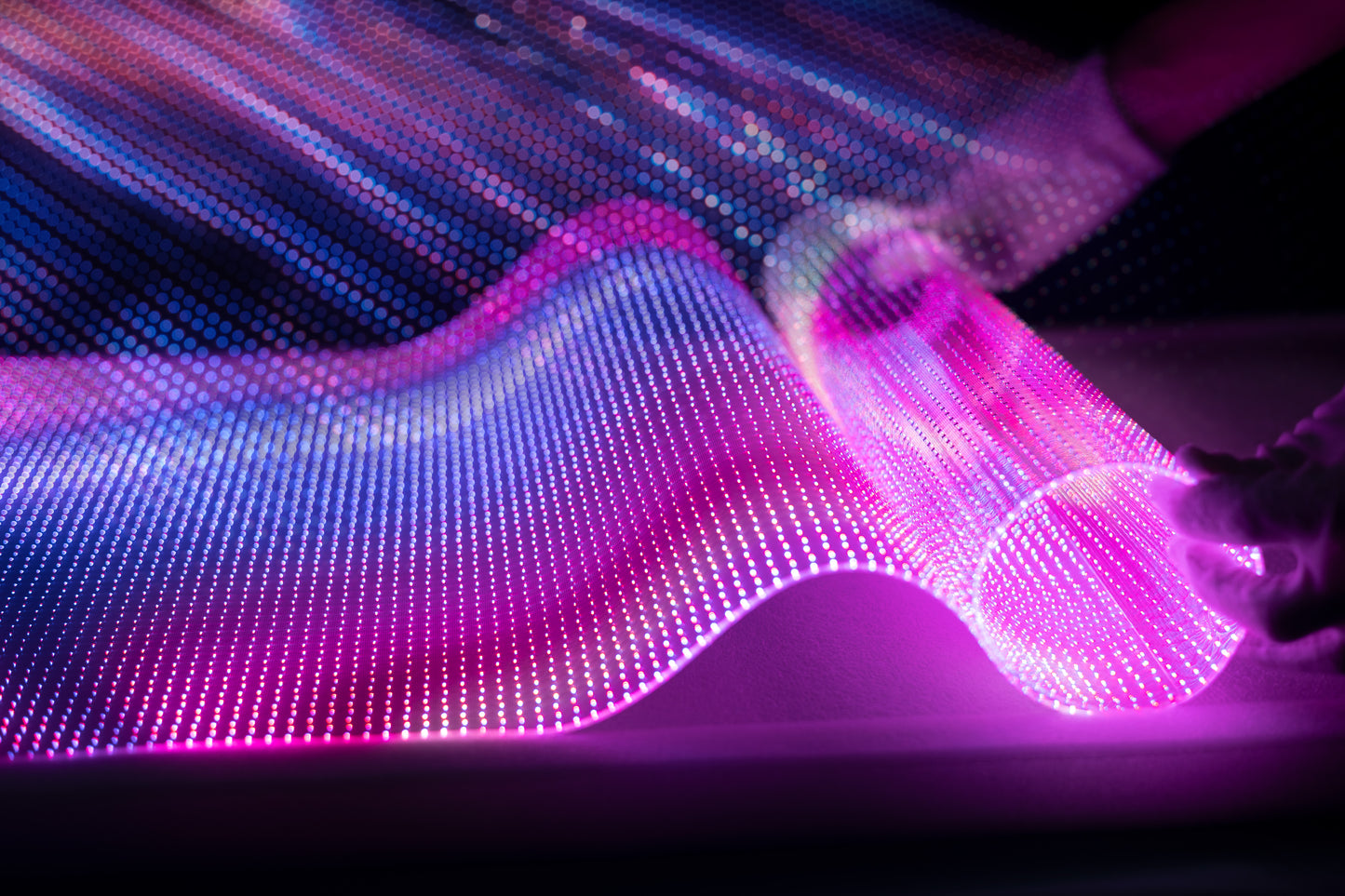

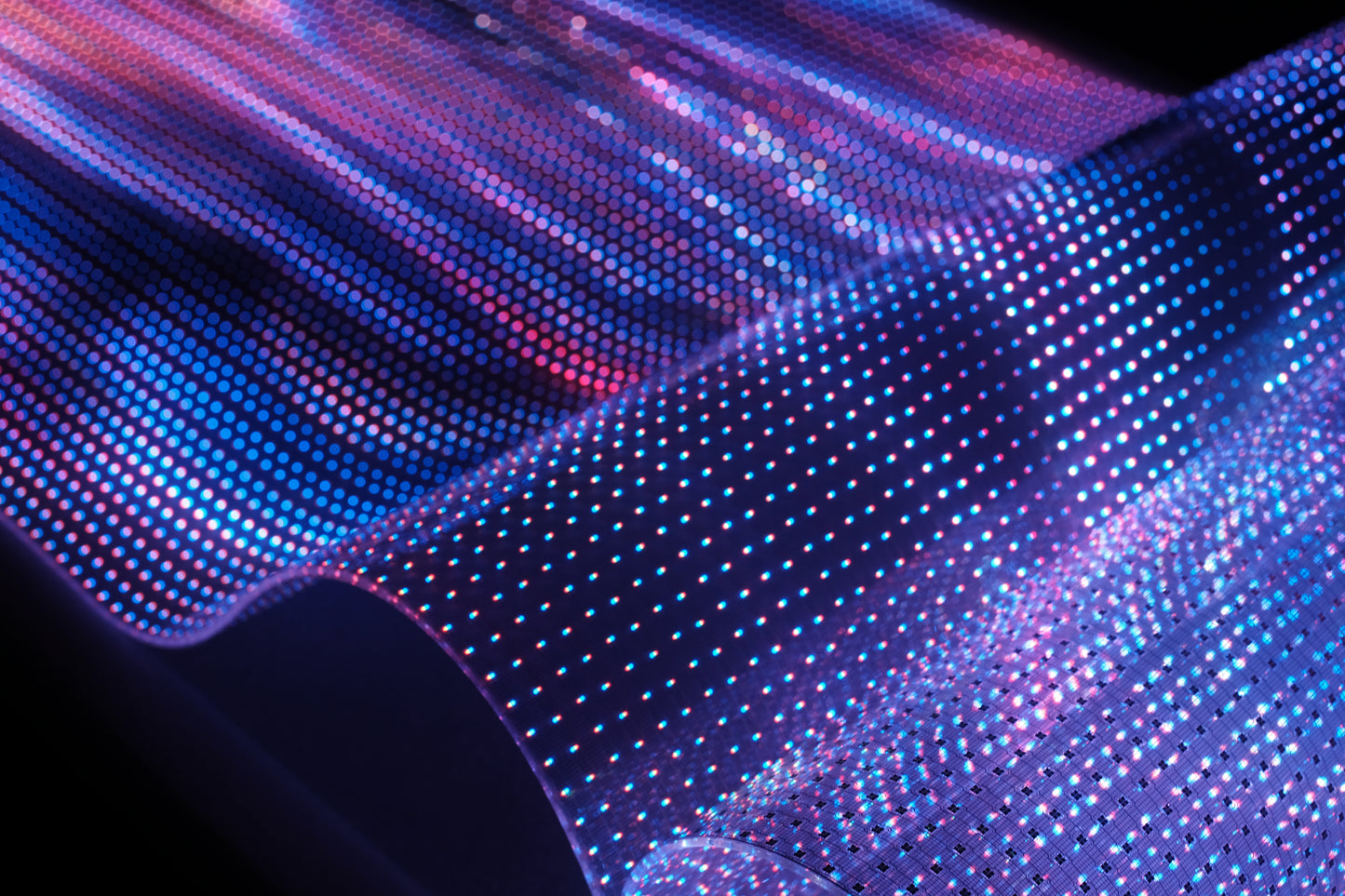

- Silicone mask, soft and free to deform
- Changeable shape, follow one's inclinations. Design the exterior shape that you can imagine
- Magnetic suction design: the adsorption is more firm to ensure the flatness of the module
- More reasonable texture design and flexible upgrade highlight the visual beauty
Creative Design and Install
There are always some very important, very special occasions that deserve to be in the limelight. For creative screens, rich shapes and unique designs are essential, which is why the retaildrip display creative shape series was born. Creative LED displays are no longer limited by traditional shapes, we can design displays with any spacing and any shape according to your requirements.
LED creative display uses LED point, line, and surface luminous display units as strokes, with original ideas and culture as the origin, with the theme of showing self-confidence, vision and dreams, relying on buildings or landscapes to create beautiful display works of art, highlighting unique and harmonious visual cultural characteristics.
