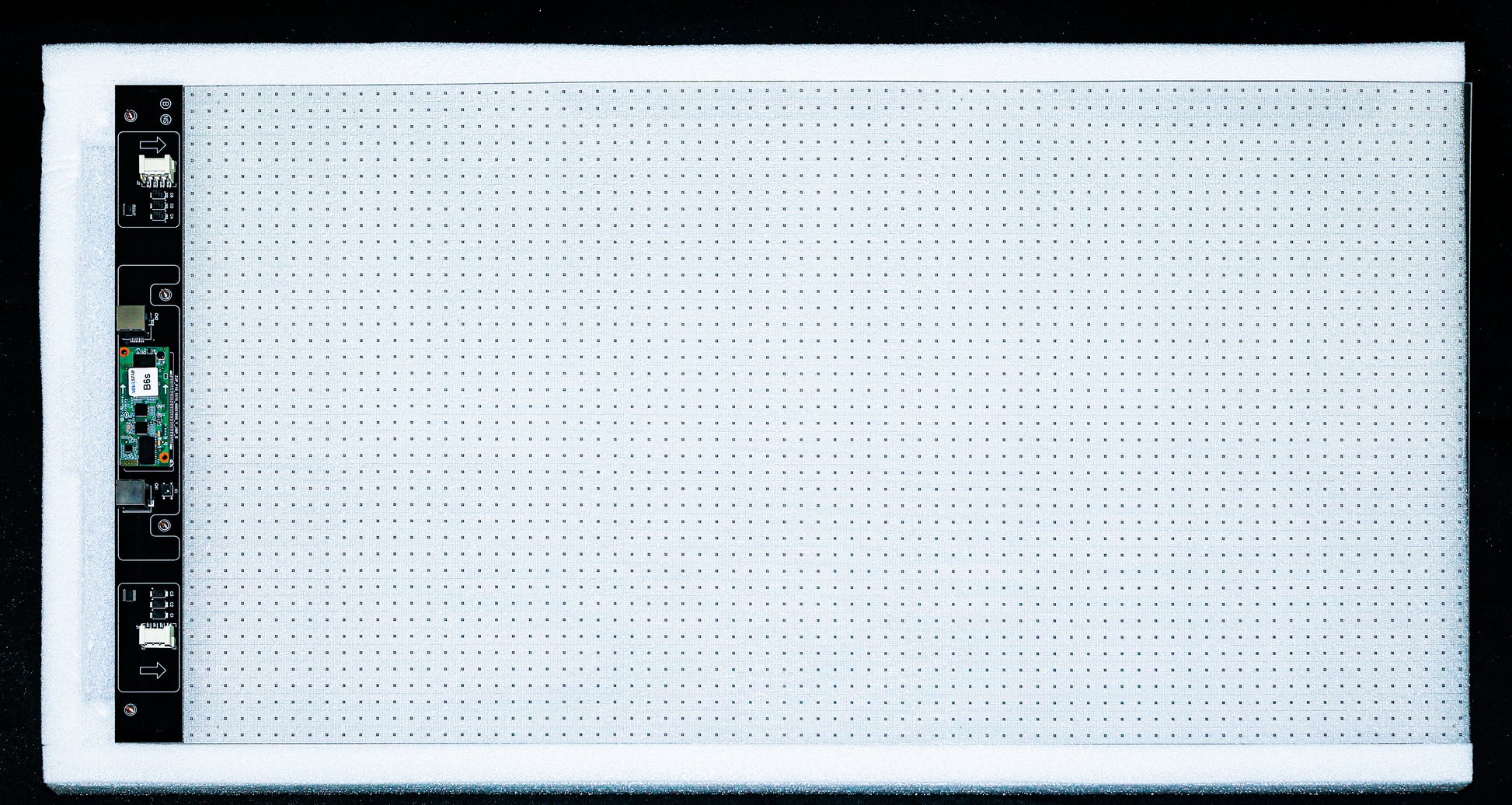

LED Transparent Film Screen
LED Transparent Film Screen
The Transparent LED Film revolutionizes display technology with its self-adhesive material that can be easily applied to any glass surface. Its exceptional transparency adds a touch of mystery and vibrant colors to any window or glass surface, making it perfect for renovation projects. This innovative material seamlessly integrates with its surroundings and effectively conveys information to passersby, even while turned off. With its super-high transparency, the LED Glass Film Screen provides a wide-open view that complements any interior design.
| Dot pitch | P6.25 | P8 | P10 | P15 | P20 |
|---|---|---|---|---|---|
| LED type | Retaildrip1515 | Retaildrip1515 | Retaildrip1515 | Retaildrip2020 | Retaildrip2020 |
| Pixel density (Dot/m²) | 25600 | 15625 | 10000 | 4356 | 2500 |
| Module resolution | 160 x 64 | 125x50 | 100 x40 | 66x26 | 50x20 |
| Module size (WxH) | 1000mmx400mm | 1000mmx400mm | 1000mmx400mm | 1000mmx400mm | 1000mmx400mm |
| Pixel pitch | W 6.25 x H 6.25 | W: 8 X H: 8 | W: 10 X H: 10 | W: 15 X H: 15 | W: 20 X H: 20 |
| Weight (kg) | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Maintenance mode | Adhesive | Adhesive | Adhesive | Adhesive | Adhesive |
| Drive mode | static | static | static | static | static |
| http | have | have | have | have | have |
| Brightness(Nits) | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 |
| Gray scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Angle of view (horizontal/vertical) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Permeability | ≥80% | ≥90% | ≥95% | ≥98% | ≥98% |
| Contrast | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Needle change frequency | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Maximum power consumption(W/m²) | 520W | 520W | 520W | 520W | 520W |
| Average power consumption (W/m²) | 200w | 200w | 200w | 200w | 200w |
| IP rating | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 |
| Power requirements | AC90-264V, 47-63 Hz | ||||
| Working temperature/humidity (°C/RH) | -20~60°C / 10%~85% | ||||
| Storage temperature/humidity (°C/RH) | -20~60°C / 10%~85% | ||||
| Applicable standard | CCC / CE / RoHS / FCC / BIS / CB / TUV / IEC | ||||
Features:

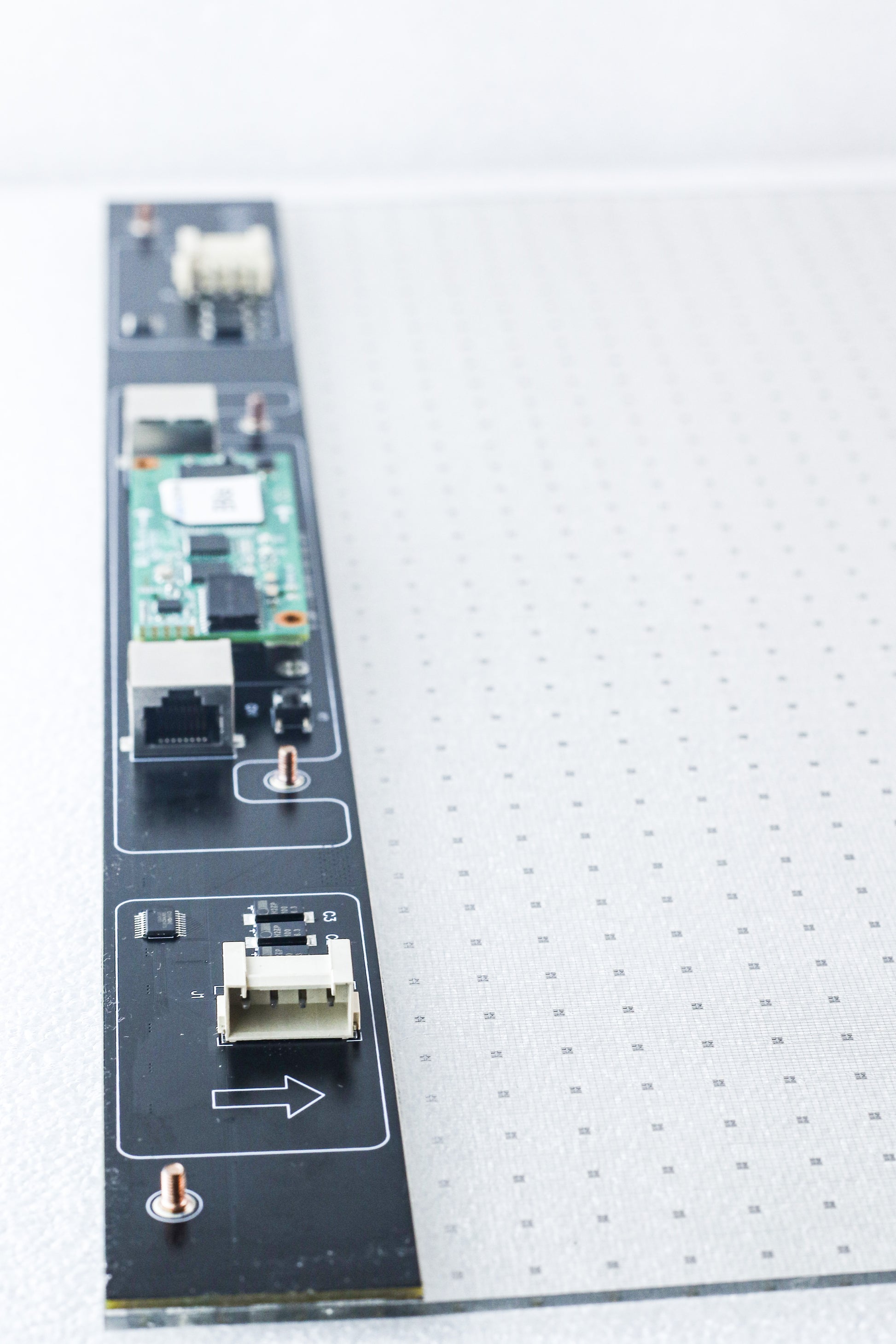

- Self-developed lamp drive in one

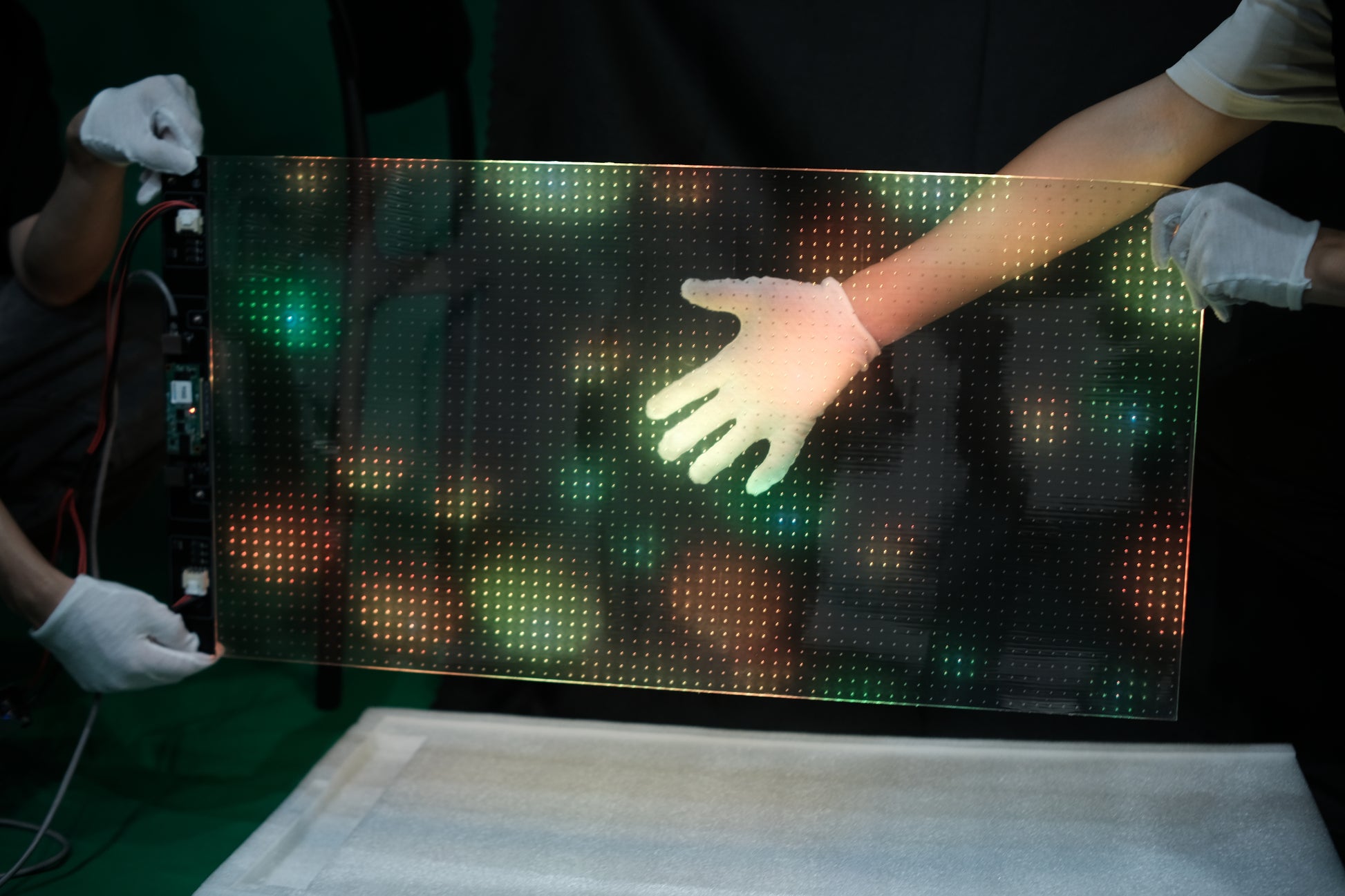

- High transparency 96%
- True grayscale 16 bit

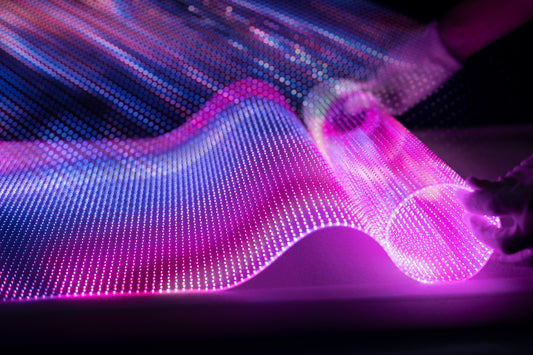

- Flexible any bend
- Anti-flame retarded V1
- Invisible grid lines
- No structure installation
- Ultra thin (2.5mm)
- Ultra light (1.3kg)
- Fast installation
Redefine space
Using soft materials, it can be widely compatible with various concave- convex curved surfaces. The glass is strong and durable. Whether your building is a commercial center or a brand chain store, Retaildrip display's LED transparent film screen will redefine art design for you
Ornate exterior wall decoration
The LED transparent film screen has a high transparent display effect, the transparent effect is as high as 95%. The transparent display effect enables the media to be combined with the architectural characteristics in the art space, turning the ordinary space into a multimedia art space with more artistic characteristics, thus arousing customers. Interested in the space art effect
Even if the product is not powered on, Retaildrip display LED transparent film screen will not affect the lighting of the original building and the display of objects under its transparent light transmittance. This greatly provides a wide field of vision and is more integrated into the art design of modern architectural interior space, and effectively conveys various information to the public through LED display characteristics
