Magnetic LED micro LED screen
Magnetic LED micro LED screen
Share

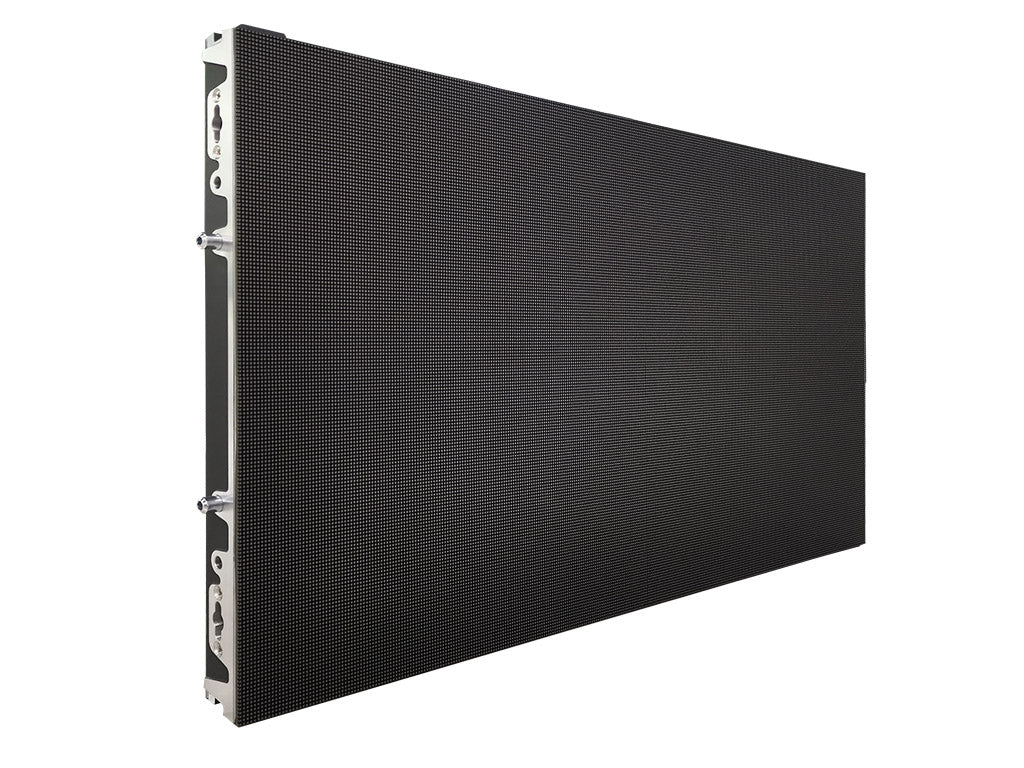

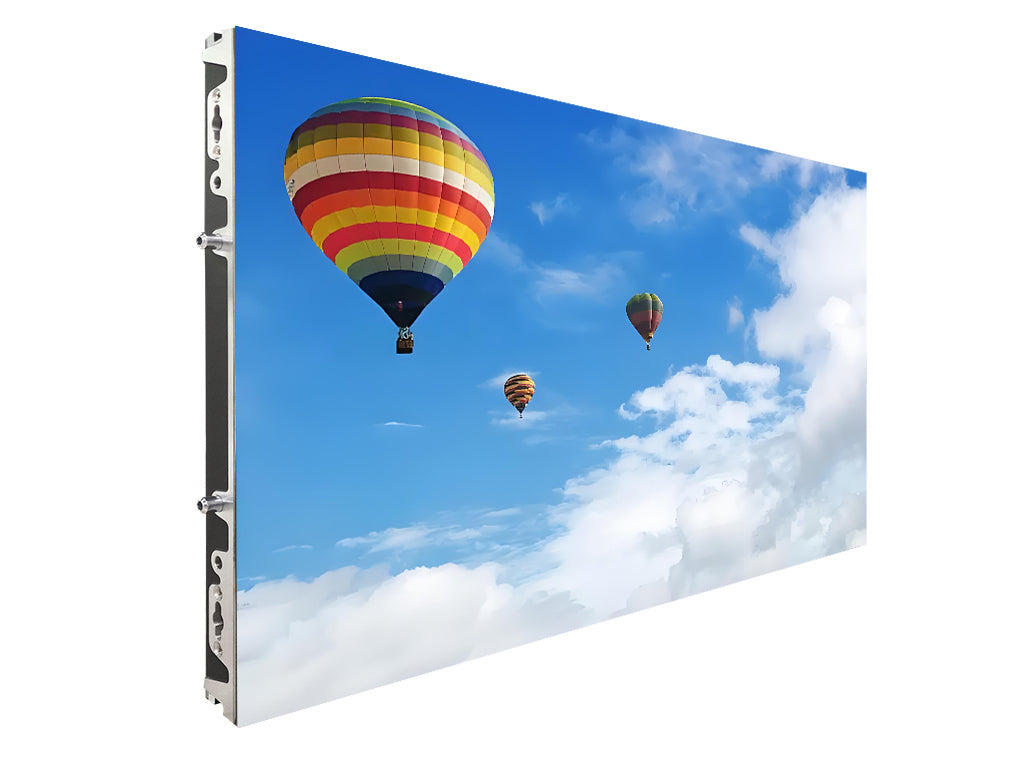

Magnetic LED micro LED screen This advanced screen technology features high-resolution micro LEDs that use magnetic fields to produce stunning visual displays. The result is exceptional brightness, color accuracy, and energy efficiency, making it the perfect choice for businesses and professionals in need of top-quality display solutions.
Dot pitch | P1.25 | P1.44 | P1.56 | P1.875 |
---|---|---|---|---|
LED type | SMD1010 | SMD1010 | SMD1010 | SMD1010 / SMD1515 |
Pixel density (Dot/m²) | 640000 | 480711 | 409600 | 284444 |
Module resolution | 160×135 | 208×117 | 128×108 | 160×90 |
Module Dimensions (W×H) | 200×168.75 | 300×168.75 | 200×168.75 | 300×168.75 |
Box size (mm) | 600×337.5×52 | 600×337.5×52 | 600×337.5×52 | 600×337.5×52 |
Cabinet resolution | 480×270 | 416×234 | 384×216 | 320×180 |
Box module composition (w × h) | 3×2 | 2×2 | 3×2 | 2×2 |
Box weight (kg) | 8.5 | 8.5 | 8.5 | 8.5 |
maintenance mode | Former maintenance | Former maintenance | Former maintenance | Former maintenance |
Cabinet material | Die cast aluminum | Die cast aluminum | Die cast aluminum | Die cast aluminum |
Single point brightness correction | Have | Have | Have | Have |
Brightness (Nits) | ≥600 | ≥600 | ≥600 | ≥600 |
Color temperature (K) | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable |
Gray scale | 16 bit | 16 bit | 16 bit | 16 bit |
Angle of view (horizontal/vertical) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
Luminance/Chromaticity Uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
Contrast | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
Frame rate | 50/60 | 50/60 | 50/60 | 50/60 |
Drive mode | 1/27S | 1/27S | 1/27S | 1/30S |
Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
Maximum power consumption(W/m²) | 420 | 420 | 420 | 420 |
Average Power Consumption (W/m²) | 100 | 100 | 100 | 100 |
Degree of protection | IP 31 | IP 31 | IP 31 | IP 31 |
power requirements | AC90-264V, 47-63 Hz | AC90-264V, 47-63 Hz | AC90-264V, 47-63 Hz | AC90-264V, 47-63 Hz |
Working temperature/humidity range (°C/RH) | -20~60°C / 10%~85% | |||
Storage temperature/humidity range (°C/RH) | -20~60°C / 10%~85% | |||
Applicable standard | CCC / CE / RoHS / FCC / BIS / CB / TUV / IEC |
- Ultra-thin (thickness 33mm)
- Ultra-light (single box weight 2.9 kg/4.5 kg/5.8 kg)
- Front maintenance, simple structure and easy installation
- Stylish and simple appearance, ultra-thin and beautiful
- Support split-screen multi-screen display
- Clear picture quality, high brightness and contrast, good color saturation
